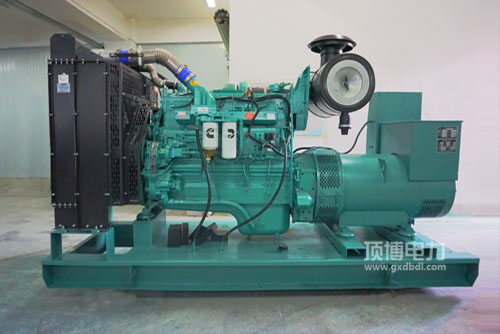

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用启驱动力燃料经济能力性好: 先进性的燃料调整体系，才有的STC、ESTC 等级划分调整体系，个性化定制的活赛上端一氧化碳冷却系统，各类高压压喷射燃料，充足雾化吸入，一氧化碳烧燃充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用启动因瞬态使用性能高品质: 很好的启动因产品 设计构思，积极配合康明斯现代感的EFC系统软件，抑制可靠性强，精密值高，相应准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用热车机升效率高: 总体的设计紧密.样貌场地布置适当合理，电脑运行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50做到国内非城市道路3.过程及亚洲Tier2. Tier 3废气政策法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件必得性好， 发起机运营及维持检修快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率依据 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯风能发电用打火机的特殊性：容积小， 压缩视频比低， 隔栅废气加水，有利发动，中国电信车载一体机电源适配器的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机规格	可用电机功率(kW)Prime Power	自备工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
